Trim - C-Pillar - Upper - LH - Remove And Replace: Removal

  1. Open LH rear door.
  2. Fold the LH 2nd row seat forward for access.
  3. Remove the LH rear C-pillar trim. See TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .

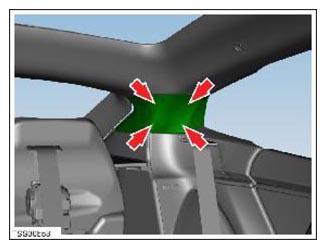

  4. Release the clips (x4) that attach the LH upper C-pillar trim to the body.
    CAUTION: Take care not to damage component(s).
    G14977046Courtesy of TESLA, INC.
  5. Carefully release the LH upper C-pillar trim from interlocking lugs (x3) from the surrounding trim.

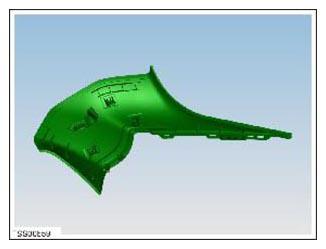

  6. Remove the LH upper C-pillar trim from the vehicle.
    G14977047Courtesy of TESLA, INC.
