Trim - Rear Trunk - Floor - Remove And Replace: Removal

  1. Open the rear liftgate for access.
  2. Remove the trunk cover.

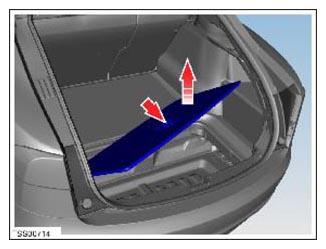

  3. Release the handle and remove the load floor.
    G14977328Courtesy of TESLA, INC.

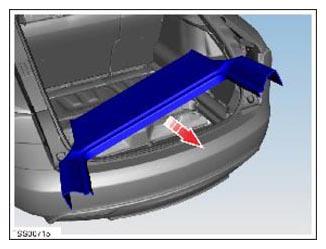

  4. Release the clips that secure the trunk trim floor to the rear rails and base of the 2nd row seats.
  5. Remove the load space floor molding.
    G14977329Courtesy of TESLA, INC.
