Wheel Arch Liner - Rear - LH - Remove And Replace: Removal

  1. Raise and support the vehicle Raise Vehicle - 2 Post Lift .
  2. Remove road wheel Wheel (Remove And Install) .

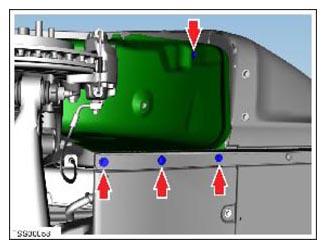

  3. Remove bolts (x2), plastic rivets (x2) securing rear wheel arch liner to rear bumper and rear undershield (torque 4 N.m/2.95 ft-lbs).
    G14975998Courtesy of TESLA, INC.

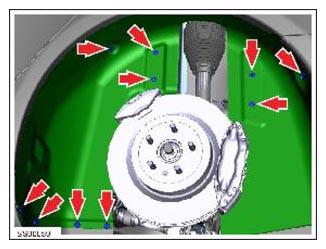

  4. Remove plastic rivets (x8), nuts (x2) securing rear wheel arch liner to chassis (torque 3 N.m/2.21 ft-lbs.).
    G14975999Courtesy of TESLA, INC.
  5. Remove wheel arch liner.
