Trim - Rear Trunk - Side - LH - Remove And Replace: Removal

  1. Remove the 'C' post rear trim, refer to TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .

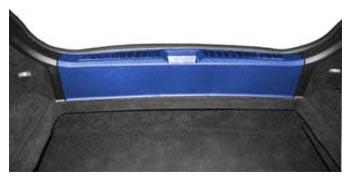

  2. Remove the trunk sill panel.
    G14977321Courtesy of TESLA, INC.

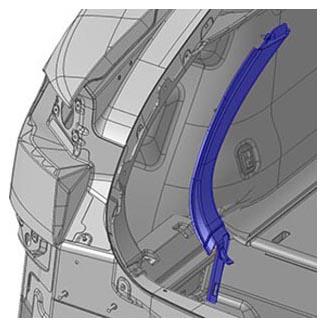

  3. Remove the trunk side garnish trim.
    G14977322Courtesy of TESLA, INC.
  4. Remove the trunk floor trim, refer to TRIM - REAR TRUNK - FLOOR (REMOVE AND REPLACE) .

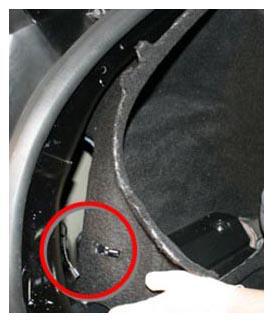

  5. Peel back the rear edge of the trunk side trim panel and disconnect the wiring harness.
    CAUTION: Do not damage the wiring harness connection.
    G14977323Courtesy of TESLA, INC.
  6. Remove the LH trunk side trim.
    G14977324Courtesy of TESLA, INC.
