Assembly - Cover - Footwell - Passenger's - Remove And Replace: Removal

  1. Fully open the front passenger door.

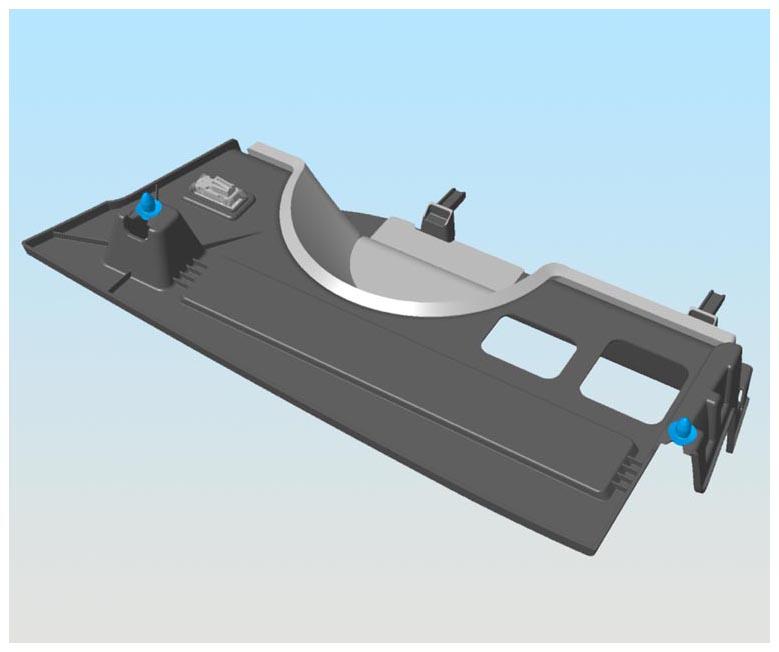

  2. Release the screws that secure the passenger-side footwell cover to the instrument panel (torque 2 N.m).
    G14976949Courtesy of TESLA, INC.
  3. Release the puddle lamp electrical connector from the footwell cover.
  4. Remove the footwell cover.
    NOTE: Pressing the lower part of the A-pillar makes it easier to move the cover past the pillar.
