Underhood Apron - Rear - Remove And Replace: Removal

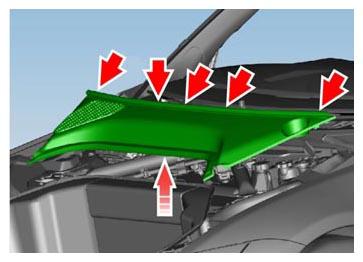

  1. Release the clips that secure the rear center underhood apron.

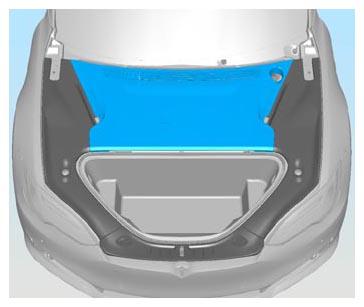

    Vehicles built through April 11, 2016 Vehicles built after April 11, 2016
    G14976104Courtesy of TESLA, INC.
    G14976105Courtesy of TESLA, INC.
  2. Remove the rear center underhood apron.
