Underhood Apron - LH - Remove And Replace: Removal

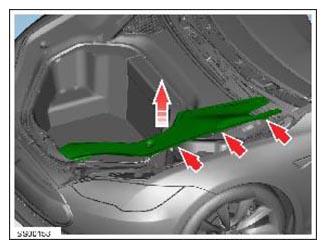

  1. Release the clips that secure the LH underhood apron.
    G14976106Courtesy of TESLA, INC.
    CAUTION: Take care not to damage component(s).
  2. Remove the clip that secures the front of the LH underhood apron.
  3. Remove the apron from the vehicle.
