Hinge - Hood - LH - Remove And Replace: Removal

  1. Remove the hood assembly. See Hood Assembly (Remove and Install) .
  2. Mark the installed position of the hinge to the hood.
  3. Remove the nuts (x2 or x3) that secure the LH hinge to the hood (torque 24 N.m/17.7 ft-lbs.).
    CAUTION: Protect exterior paint work from possible damage during this procedure.

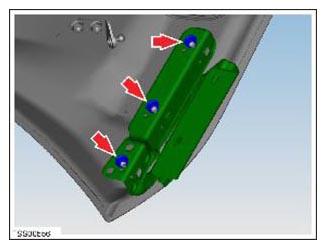

    G14975031Courtesy of TESLA, INC.

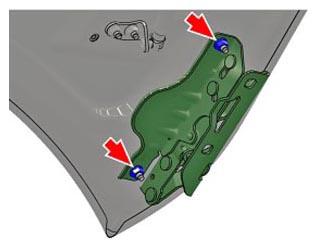

    G14975032Courtesy of TESLA, INC.
  4. Remove LH hood hinge.

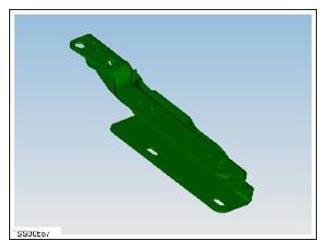

    G14975033Courtesy of TESLA, INC.
