Glove Box - Remove And Replace: Removal

  1. Remove the RH lower instrument panel, refer to ASSEMBLY - INSTRUMENT PANEL LOWER - RH (REMOVE AND REPLACE)

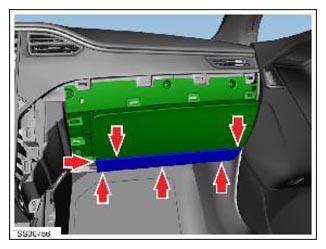

  2. Remove the lower glove box panel by releasing the trim clips (x6).
    G14976863Courtesy of TESLA, INC.
  3. Open the glove box.

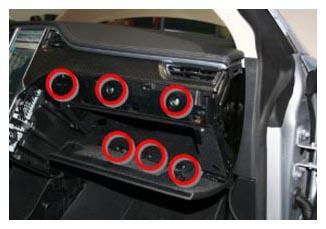

  4. Remove the 6 screws that secure the glove box (torque 2.3 N.m).
    G14976864Courtesy of TESLA, INC.
  5. Release the glove box assembly.
    CAUTION: Do not damage the 3 harness connections that are attached to back of the glove box.

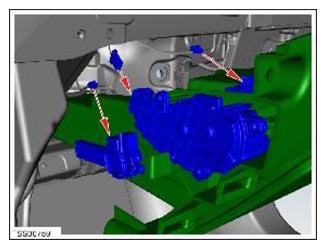

  6. Disconnect the 3 harness connections from the back of the glove box.
    G14976865Courtesy of TESLA, INC.
  7. Remove the glove box.
