Glove Box - Latch Release - Remove And Replace: Removal

  1. Remove glove box assembly, refer to GLOVE BOX (REMOVE AND REPLACE)

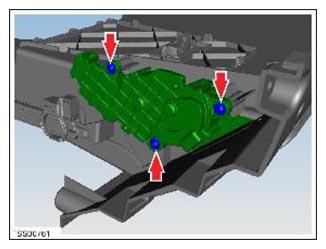

  2. Remove screws (x3) securing latch release module to glove box assembly.
    G14976866Courtesy of TESLA, INC.

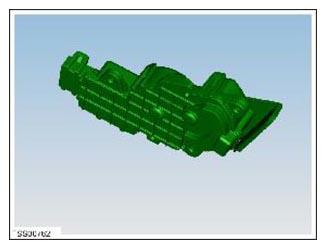

  3. Remove latch module from glove box.
    G14976867Courtesy of TESLA, INC.
