Face Level Vent - Driver's - Outer - Remove And Replace: Removal

  1. Remove the driver side lower dash trim, refer to TRIM - DASH - DRIVER'S SIDE - LOWER (REMOVE AND REPLACE) .

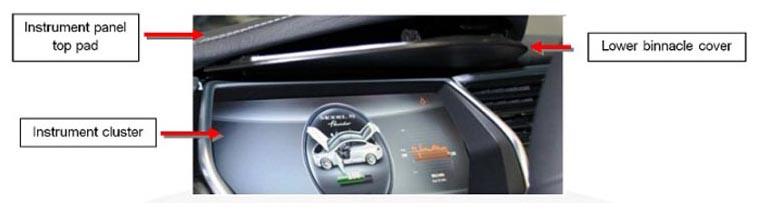

  2. Remove the lower binnacle cover.
    G14976890Courtesy of TESLA, INC.

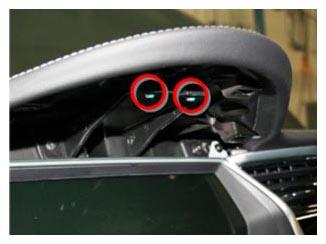

  3. Remove the 2 screws beneath the lower binnacle cover that secure the IP top pad to the IP carrier.
    G14976891Courtesy of TESLA, INC.

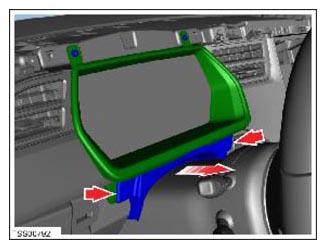

  4. Lower the steering column and remove the steering column gap hider by releasing the 2 trim clips.
    G14976892Courtesy of TESLA, INC.

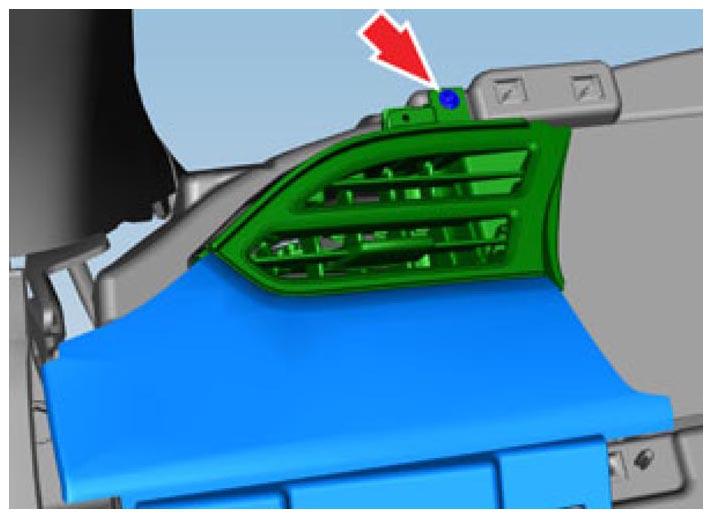

    CAUTION: The top screw that secures the vent is underneath the top pad. It is necessary to release the leftmost clips on the top pad in order to access the screw. If possible, use an inflatable wedge. Be very careful not to bend the top pad.
    G14976893Courtesy of TESLA, INC.
  5. Apply protective tape along the LH side of the chrome strip that runs just beneath the top pad.
  6. Very carefully lift up the LH side of the top pad.
    CAUTION: Be very careful not to bend the top pad. If necessary, ask an assistant for help.
  7. Remove the instrument cluster bezel.

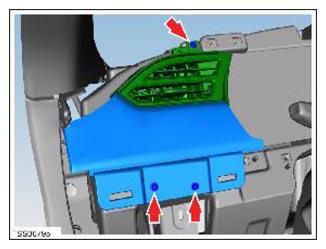

  8. Remove the 3 screws that secure the face vent & trim to the dash (torque 1 N.m).
    G14976894Courtesy of TESLA, INC.

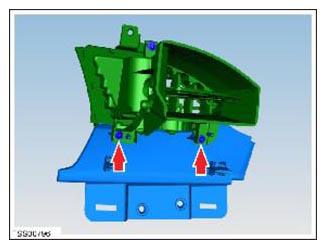

  9. Remove the 2 screws that secure the face vent & trim (torque 1 N.m).
    G14976895Courtesy of TESLA, INC.
  10. Remove the face vent assembly.

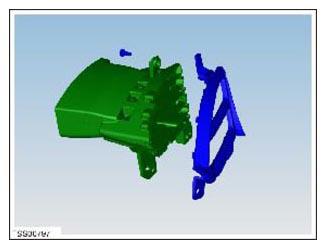

  11. Remove the 1 screw that secures the face vent bezel (torque 1 N.m).
  12. Remove the bezel from the face vent.
    G14976896Courtesy of TESLA, INC.
