Assembly - Cover - Footwell - Driver's - Remove And Replace: Removal

  1. Fully open the LH door.
  2. Remove the LH side center console closeout extension Assembly - Closeout Extension - LH - Center Console (Remove And Replace) .

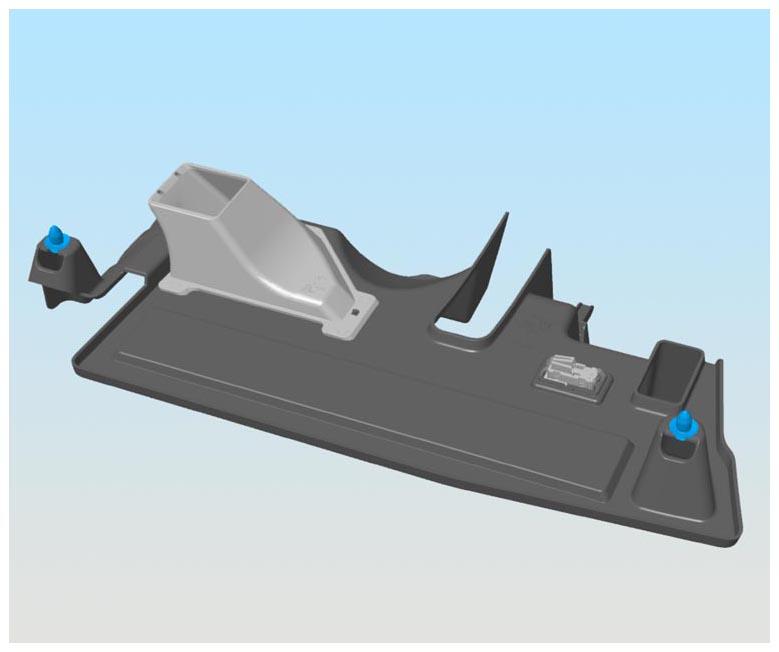

  3. Release the clips (x2) that secure the driver-side footwell cover to the instrument panel.
    G14976948Courtesy of TESLA, INC.
  4. Release the puddle lamp electrical connector from the footwell cover.
  5. Remove the footwell cover.
