Speaker - Rear Door All, Front Door Base Audio - Remove And Replace: Removal

  1. Remove rear door trim panel Panel - Door Trim - Rear - LH (Remove And Install)
  2. Disconnect speaker harness connector.
    NOTE: Components have been removed in this graphic to aid clarity.

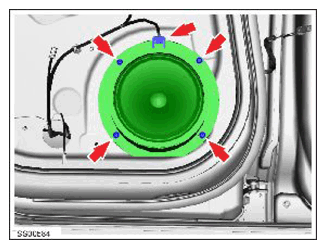

  3. Remove screws (x4) securing speaker to rear door (torque 1.8 N.m).
    G14980005Courtesy of TESLA, INC.

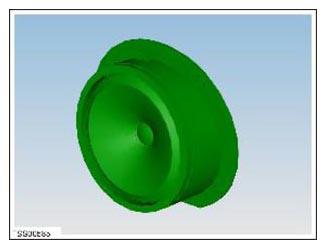

  4. Remove rear door speaker.
    G14980006Courtesy of TESLA, INC.
