Speaker - Rear - LH/RH - Remove And Replace: Removal

  1. Open tailgate to suitable working height.

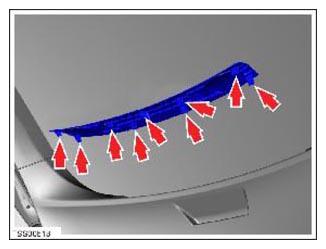

  2. Carefully release speaker cover clips (x9) from tailgate.
    CAUTION: Take care not to damage component(s).
  3. Remove speaker covers and position aside.
    G14980008Courtesy of TESLA, INC.
  4. Remove screws (x4) securing speakers (x2) to tailgate (torque 1 N.m).
    G14980009Courtesy of TESLA, INC.

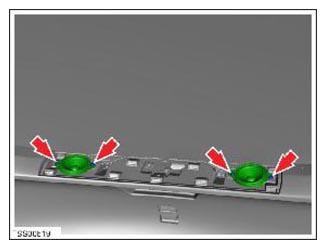

  5. Release speakers and disconnect wiring harness connections (x2).
    NOTE: Mark speaker connectors before disconnecting for identification purposes.
    G14980010Courtesy of TESLA, INC.
  6. Remove both speakers.
