Premium Boost Amplifier (RHD) - Remove And Replace: Removal
- Remove HEPA filter outlet duct. See Duct - HEPA Filter - Outlet (Remove And Replace) .
- Disconnect 12V power. See Disconnect 12V Power .
- Remove the accelerator pedal. See Accelerator (Remove And Replace) .

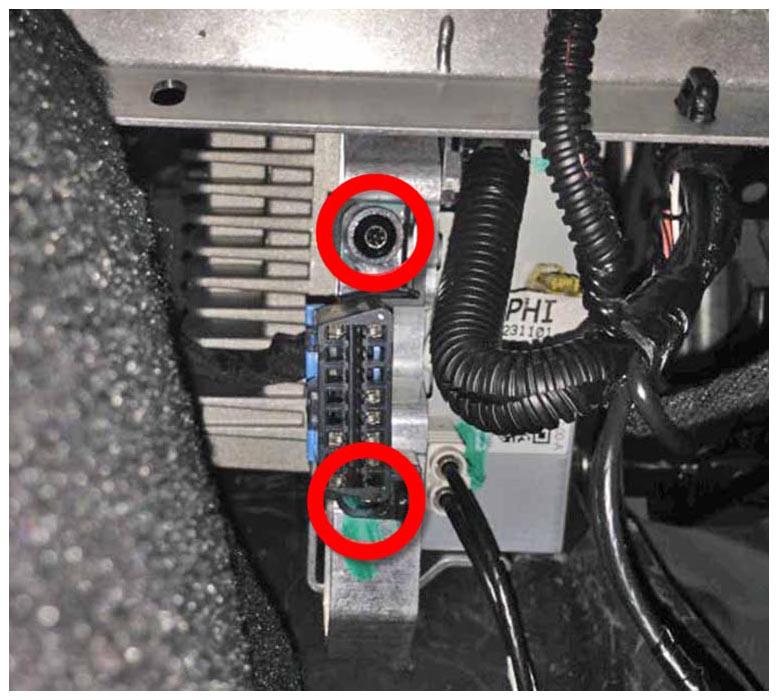

- Remove the screws (x2) that attach the OBDII connector to the tuner bracket, and then remove the connector from the bracket.

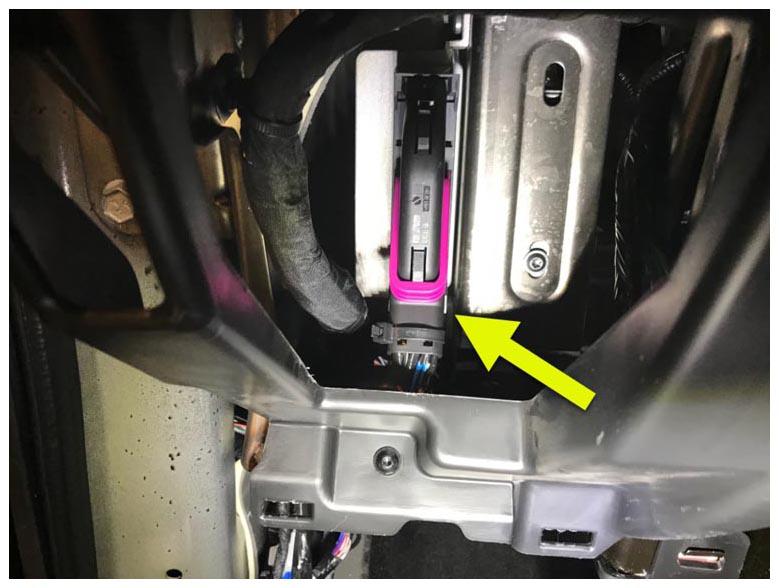

- Disconnect the electrical harness from the premium amplifier connector.
- Remove steering column. See Steering Column (Remove And Replace) .
- Remove brake pedal. See Brake Pedal (Remove And Replace) .

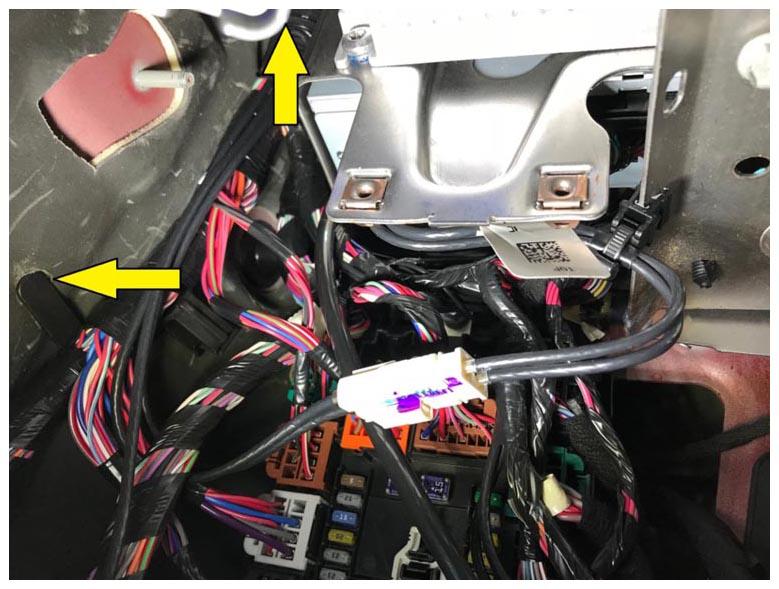

- Release the clips (x2) that attach the main electrical harness to the bulkhead, and move the harness away from the tuner.

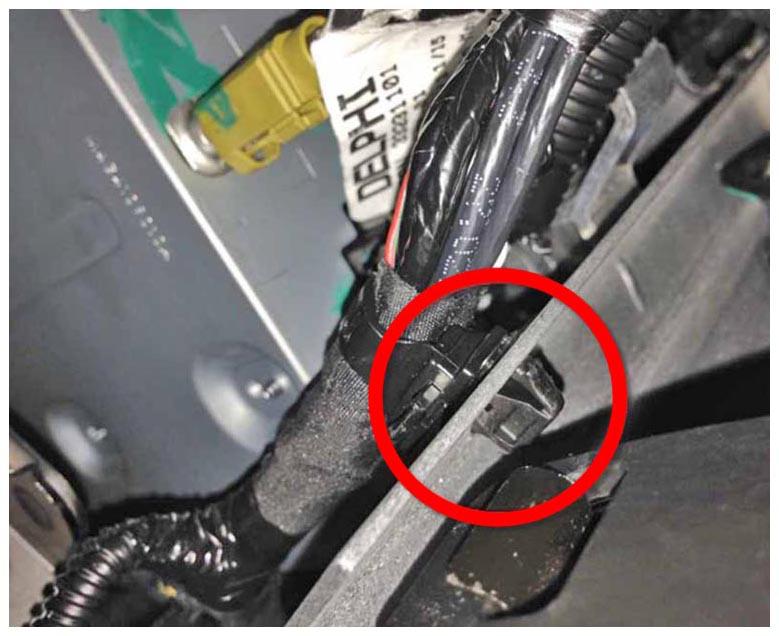

- Release the edge clip that attaches the front electrical harness to the body, and move the harness away from the tuner.

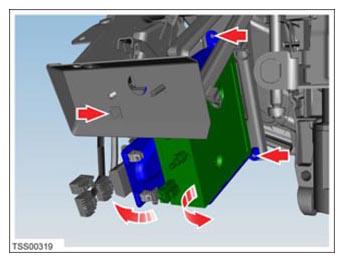

- Remove the bolts (x3) that attach the amplifier/tuner bracket assembly to the cross car beam.

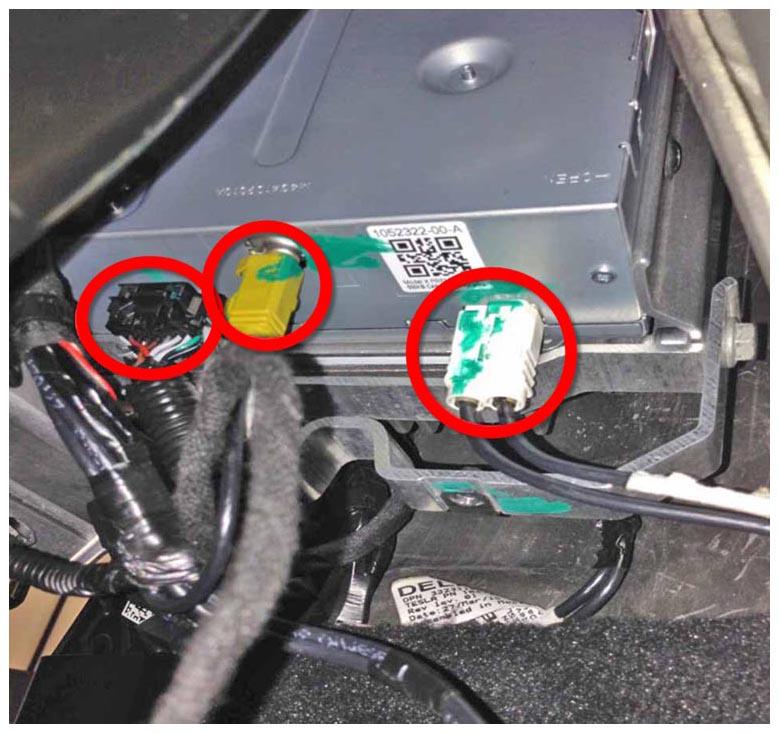

- Disconnect the electrical harness from the tuner connectors.

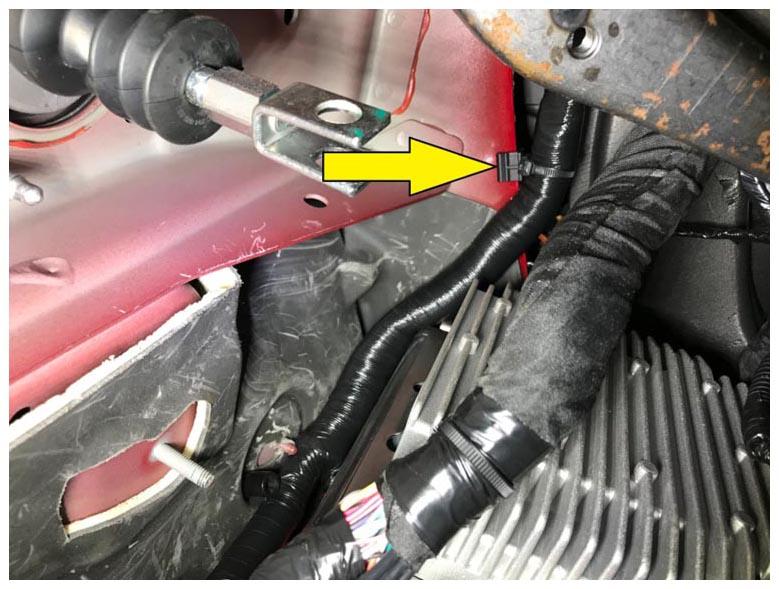

- Release the fir tree clip that attaches the electrical harness to the cross car beam, and then move the electrical harness to the side.
- Move the amplifier/tuner bracket assembly out through the bottom of the IP carrier, and then remove the assembly from the vehicle.
Tip: Rotate the bracket assembly to different angles to ease removal.

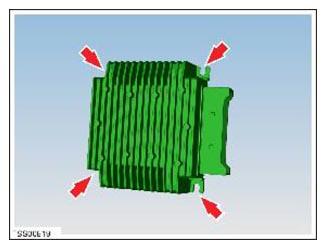

- Remove the screws (x4) that attach the amplifier to the amplifier/tuner bracket, and then remove the amplifier from the bracket.
