Antenna Amplifier - FM2/Satellite/DAB - Remove And Replace: Removal
- Remove the RH liftgate trim Finisher - Liftgate - Rear Window - Side - LH (Remove And Replace) .
- Remove the screw that secures the amplifier to the liftgate (torque 1.2 N.m).

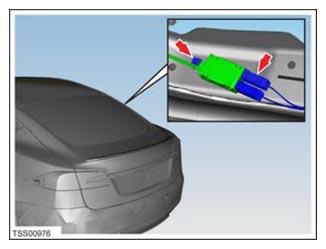

- Carefully disconnect the amplifier connector.NOTE: The second connector is for EU markets only.
- Release the clip that secures the amplifier to the liftgate.

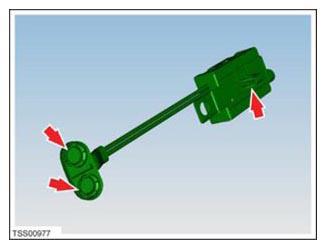

- Carefully release the antenna lead from the liftgate glass and then remove the antenna.
