Seal - Rear Door - LH - Remove And Replace: Removal

  1. Remove door trim Panel - Door Trim - Rear - LH (Remove And Install)
  2. Release clips (x2) securing flap seal end to door.
    NOTE: Components have been removed in this graphic to aid clarity.
    CAUTION: Take care not to damage component(s).

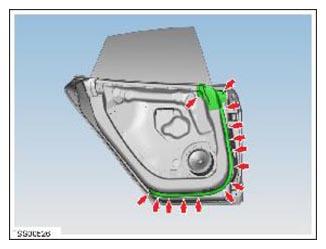

  3. Carefully release remaining clips (x12).
    G14975389Courtesy of TESLA, INC.

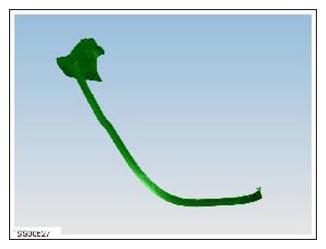

  4. Remove door seal.
    G14975390Courtesy of TESLA, INC.
