Seal - Inner Belt - Front Door - LH - Remove And Replace: Removal

  1. Lower the door glass.
  2. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install) .
  3. Remove the trim stud that attaches the flap seal to the door.
  4. Carefully ease the flap seal clear of the inner belt seal for access.
    CAUTION: Take care not to damage component(s).
    G14975395Courtesy of TESLA, INC.

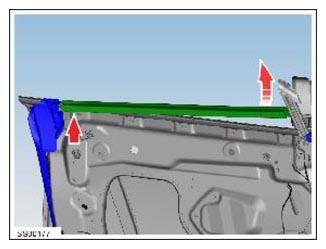

  5. Starting from the mirror end, carefully lift and remove the inner belt seal from the door.
    G14975396Courtesy of TESLA, INC.
