Striker - Liftgate - Remove And Replace: Removal

  1. Open liftgate.

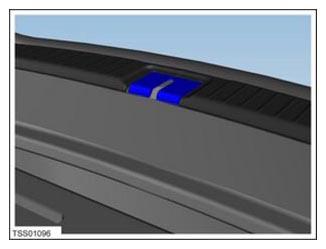

  2. Remove liftgate striker cover.
    G14975085Courtesy of TESLA, INC.

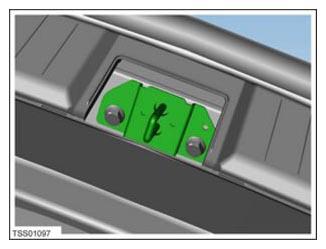

  3. Remove bolts (x2) securing striker to body (torque 10 N.m/7.37 ft-lbs.).
    G14975086Courtesy of TESLA, INC.

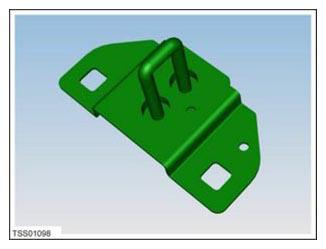

  4. Remove striker from vehicle.
    G14975087Courtesy of TESLA, INC.
