Rear Brake Adjuster and Shoe Lever Check

Reference: REAR BRAKE SHOE REMOVAL AND INSTALLATION

• Check ratchet of brake adjuster (1) assembly for wear or damage.
• Check shoe return spring, anti-rattle spring, quadrant spring and hold down spring for damage, corrosion and weakening.
• Check for smooth movement of brake shoe lever (2) along shoe rim.

  If any defective or malfunction is found, repair or replace.

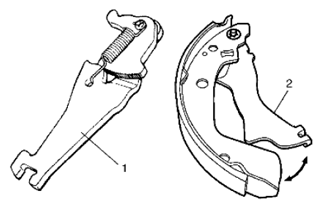

  Fig 1: Identifying Brake Adjuster And Brake Shoe Lever

  Courtesy of SUZUKI OF AMERICA CORP.
