DTC Clearance

Confirm that ignition mode of keyless push start system is "OFF".
Connect SUZUKI scan tool to DLC (1).
Special Tool
1. SUZUKI scan tool (SUZUKI-SDT)

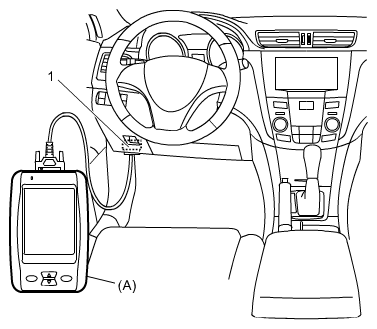

Fig 1: Connecting Scan Tool To DLC
Courtesy of SUZUKI OF AMERICA CORP.
Push engine switch to change ignition mode to "ON".
Erase DTC according to instructions displayed on scan tool. Refer to SUZUKI scan tool operator's manual for further details.
After completing clearance, change ignition mode to "OFF" and disconnect SUZUKI scan tool from DLC.
