Parking Sensor System Circuit Diagram (If Equipped)

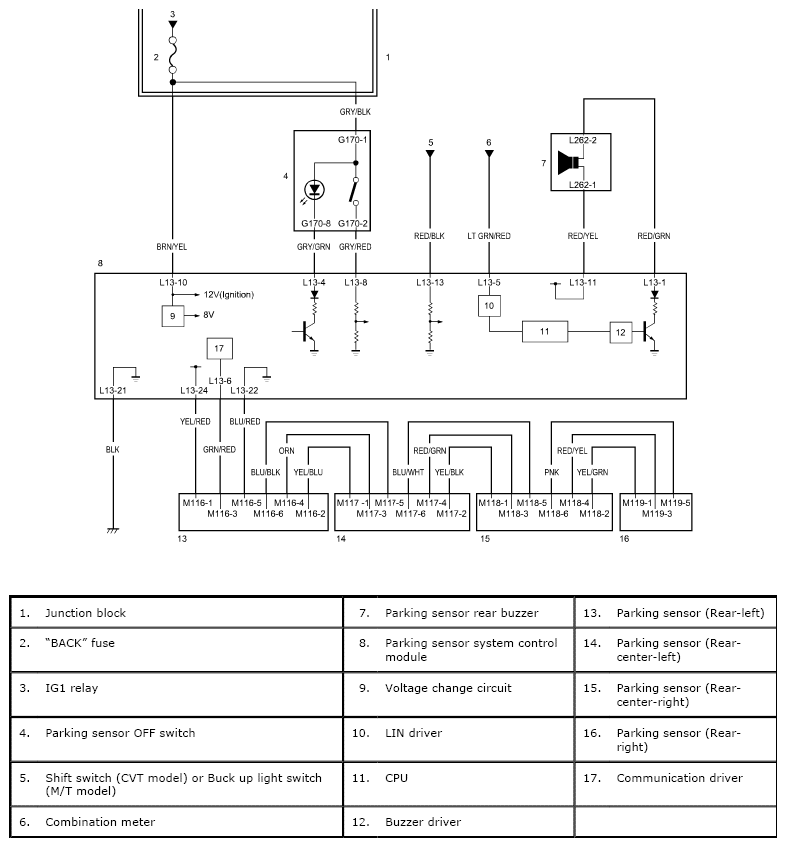

Fig 1: Parking Sensor System Circuit Diagram

G06529035

Courtesy of SUZUKI OF AMERICA CORP.
