Parking Sensor Rear Buzzer Inspection (If Equipped)

Reference: PARKING SENSOR REAR BUZZER REMOVAL AND INSTALLATION (IF EQUIPPED)

1. Connect parking sensor buzzer (1) to positive (+) and negative (-) terminals as shown in figure. Replace parking sensor rear buzzer if it does not sound.

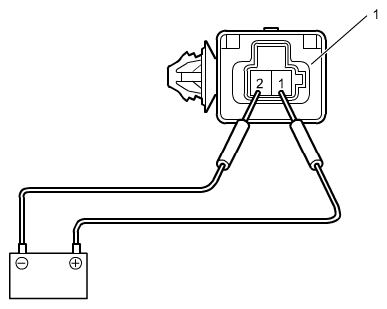

   Fig 1: Connecting Parking Sensor Buzzer Terminals To Battery

   Courtesy of SUZUKI OF AMERICA CORP.
