Air Bag System Component, Wiring and Connector Location

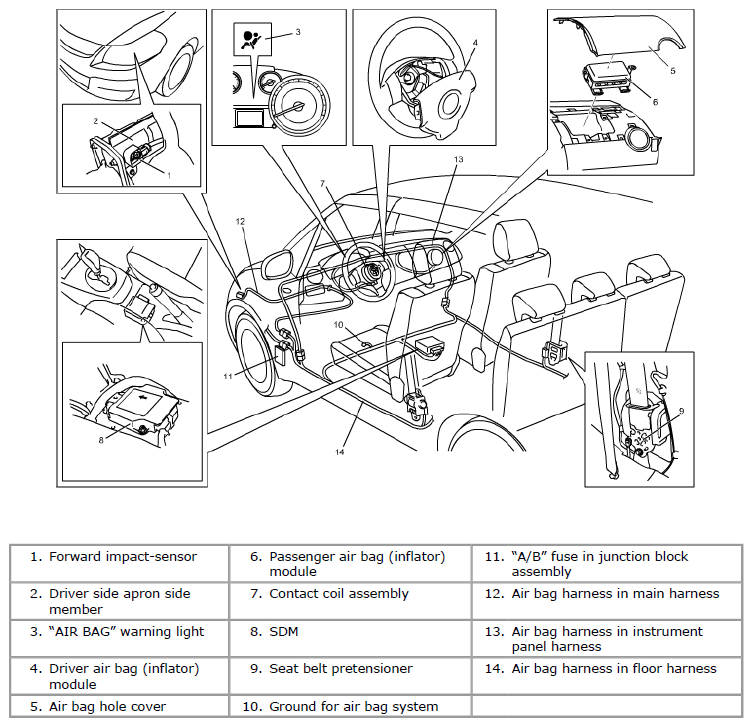

Fig 1: Identifying Air Bag System Component, Wiring And Connector Location

G06867713

Courtesy of SUZUKI OF AMERICA CORP.
