Propeller Shaft Inspection (4WD)

  1. Check propeller shaft connecting bolts for looseness. If looseness is found, tighten to specified torque.
  2. Check propeller shaft joints for wear, play and damage. If any defect is found, replace.
  3. Check propeller shaft center support for biting of foreign matter, crank, abnormal noise and damage. If any defect is found, replace.

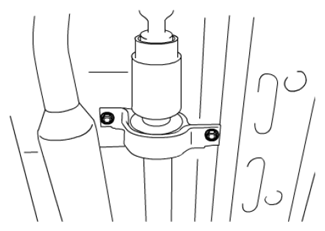

    Fig 1: Identifying Propeller Shaft Joints
    G06866850Courtesy of SUZUKI OF AMERICA CORP.
