Fuel Tank, Cap Gasket and Fuel Lines Inspection

Check fuel tank, fuel filler cap (1) and fuel lines for loose connection, deterioration or damage which could cause leakage. Make sure all clamps are secure.
Check fuel filler cap gasket (2) for an even filler neck imprint or any damage.
Replace any damaged or deteriorated parts.
There should be no sign of fuel leakage or moisture at any fuel connection.

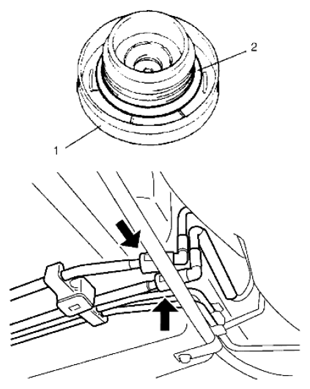

Fig 1: Locating Fuel Tank, Cap Gasket And Fuel Lines
Courtesy of SUZUKI OF AMERICA CORP.
