Rear Drive Shaft Components
Rear Drive Shaft Components

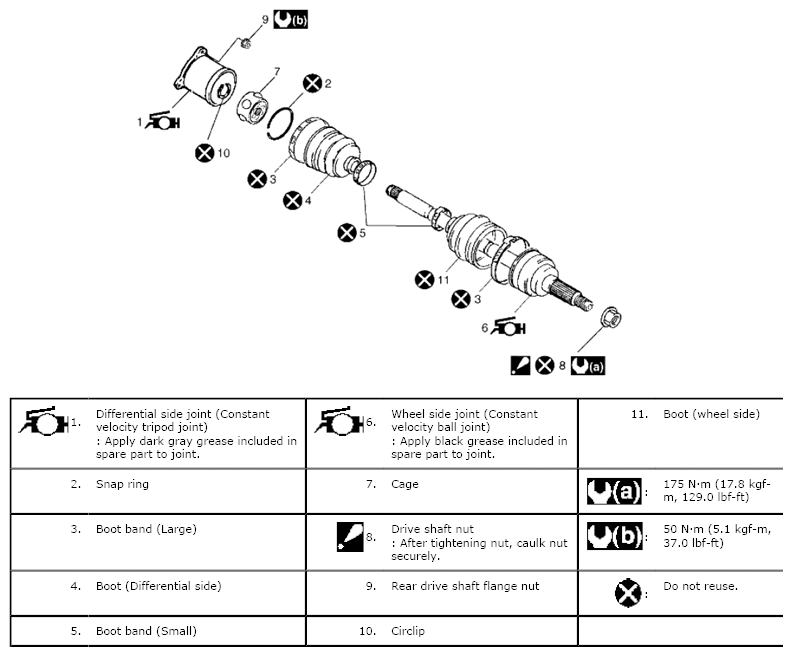

Fig 1: Rear Drive Shaft Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
