Rear Drum Brake Components

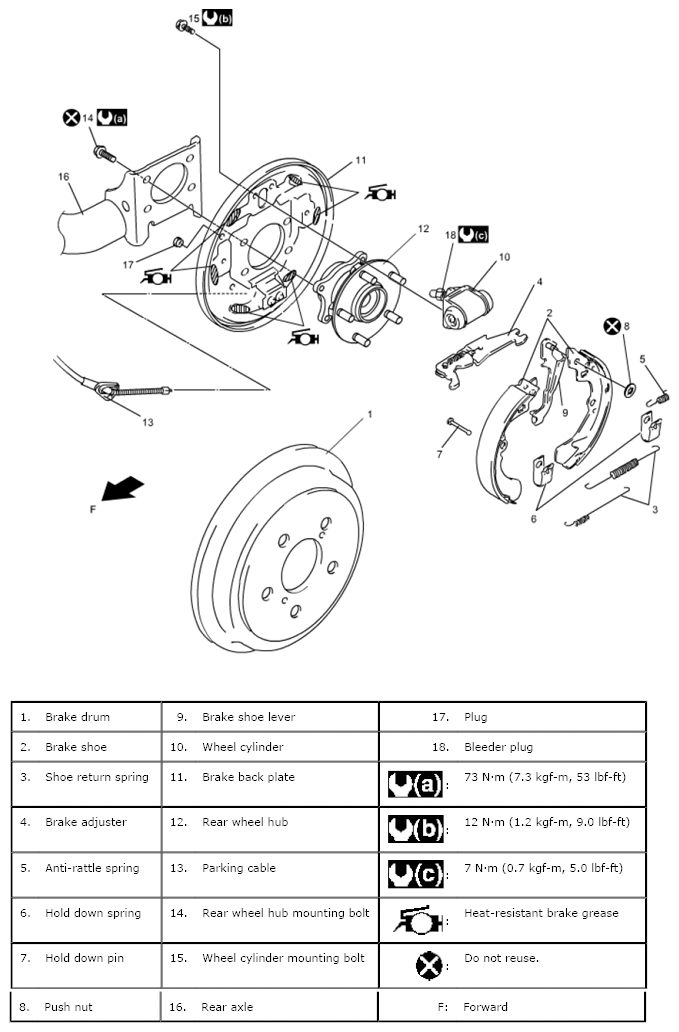

Fig 1: Rear Drum Brake Replacement Components With Torque Specifications

G06868493

Courtesy of SUZUKI OF AMERICA CORP.
