Master Cylinder and Brake Booster Components

CAUTION: The master cylinder and brake booster will lose their original performance if they are disassembled and reassembled. If any faulty condition is found with the master cylinder or brake booster, replace the part rather than trying to disassemble and repair it.

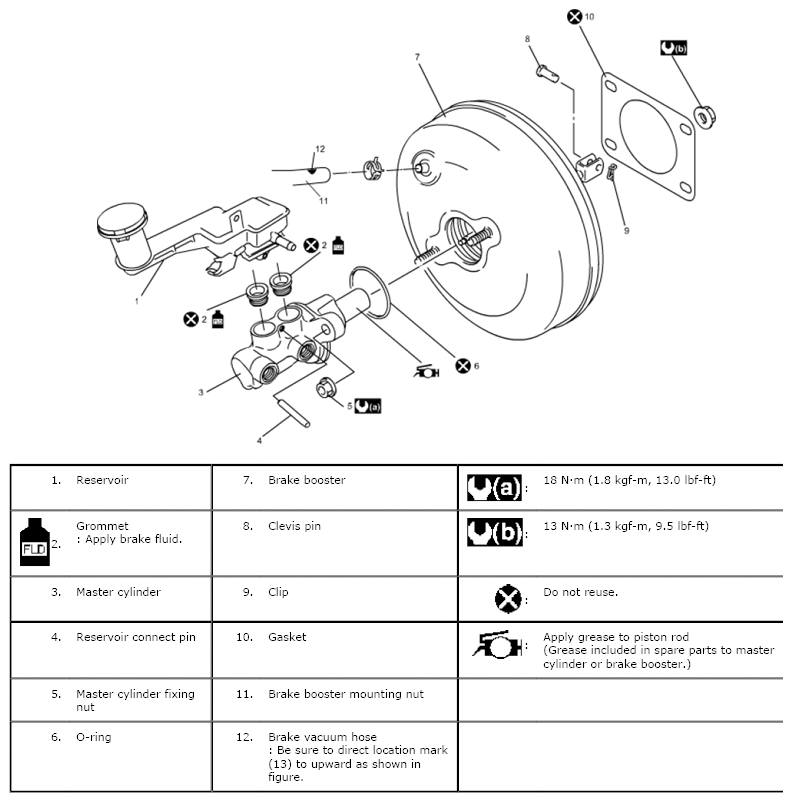

Fig 1: Identifying Master Cylinder And Brake Booster Components
G06868441Courtesy of SUZUKI OF AMERICA CORP.
