Front Brake Hose and Pipe Components

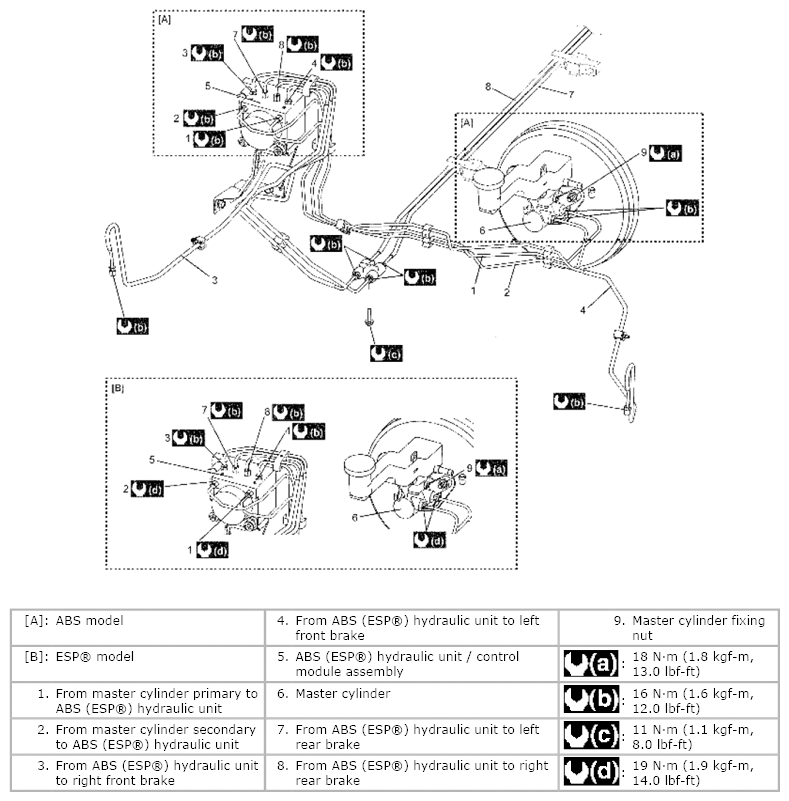

Fig 1: Identifying Front Brake Hose And Pipe Components

G06868437

Courtesy of SUZUKI OF AMERICA CORP.
