Rear Door Assembly Components

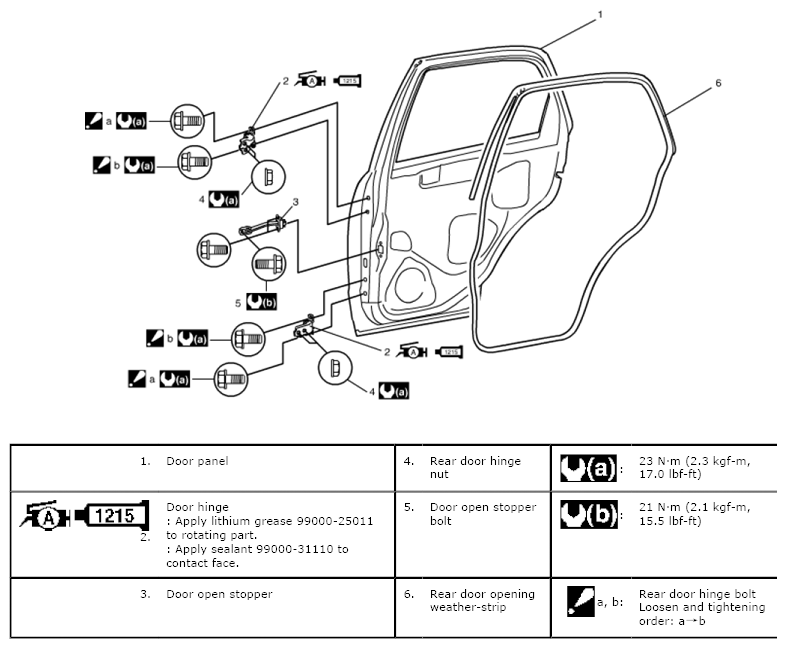

Fig 1: Rear Door Assembly Replacement Components With Torque Specifications

G06868944

Courtesy of SUZUKI OF AMERICA CORP.
