Panel Clearance (2012)
Panel Clearance (2012)

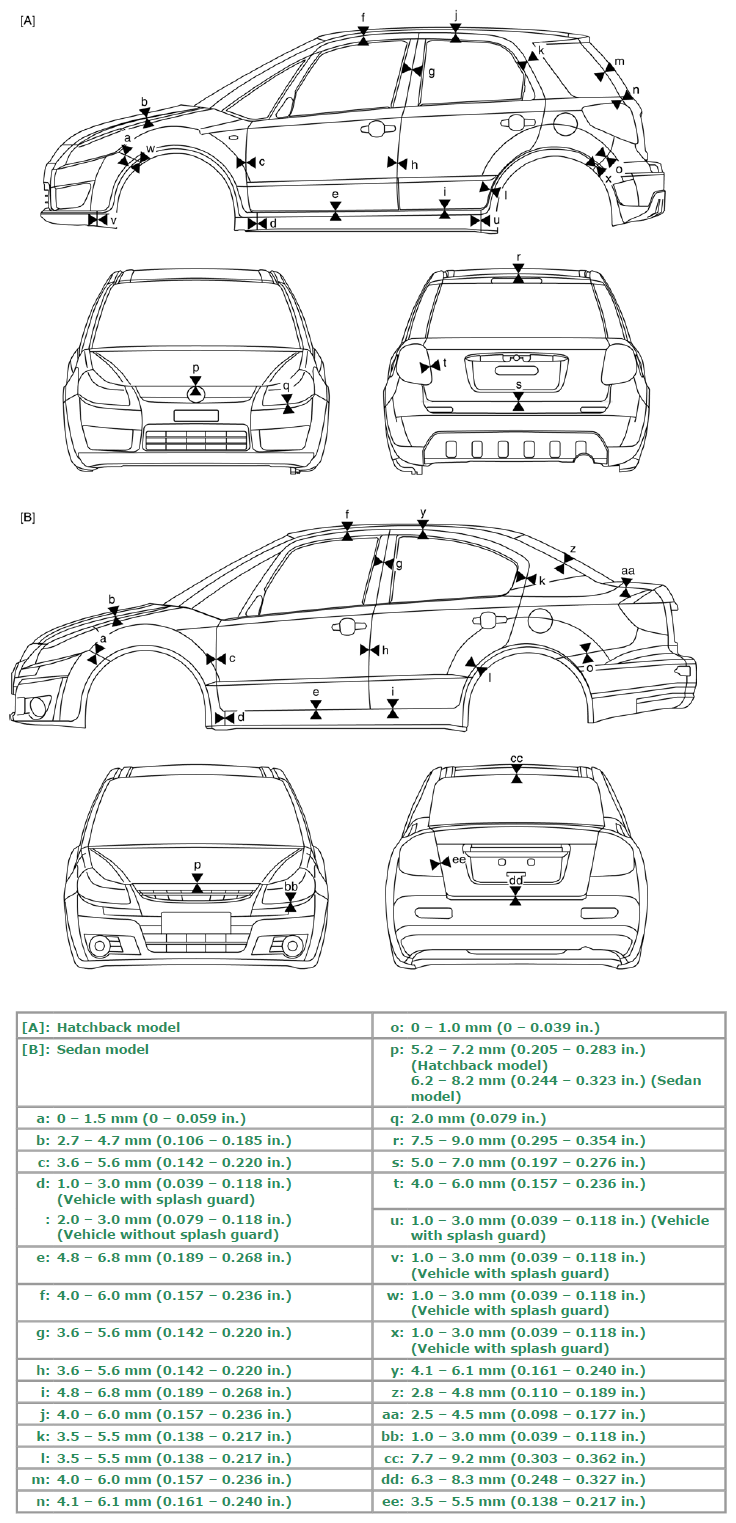

Fig 1: Identifying Panel Clearance
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
