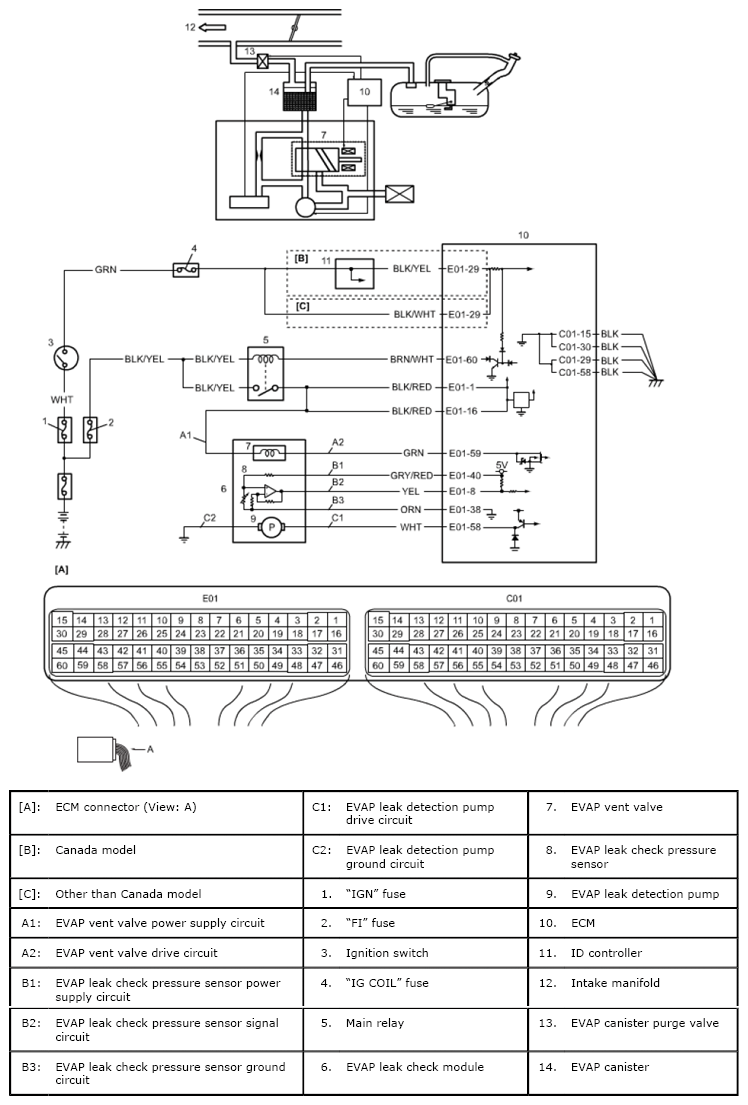

Home >> Suzuki >> 2012 >> SX4 Crossover, Standard Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> Testing & Diagnosis >> Engine General Information & Diagnosis >> Diagnostic Information and Procedures >> DTC P0449: Evaporative Emission System Vent Valve/Solenoid Circuit >> Circuit Diagram
