Brake Drums and Shoes Inspection (Rear)

  1. Remove wheel and brake drum.
  2. Check rear brake drums and brake linings for excessive wear and damage, while wheels and drums are removed. At the same time, check wheel cylinders for leaks. Replace these parts as necessary.

    For details, refer to REAR BRAKE DRUM AND SHOE INSPECTION .

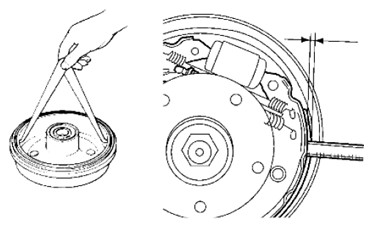

    Fig 1: Inspecting Brake Drums And Shoes (Rear)
    G06866837Courtesy of SUZUKI OF AMERICA CORP.
