Individual Circuit Fuse Box No. 2 (In J/B)

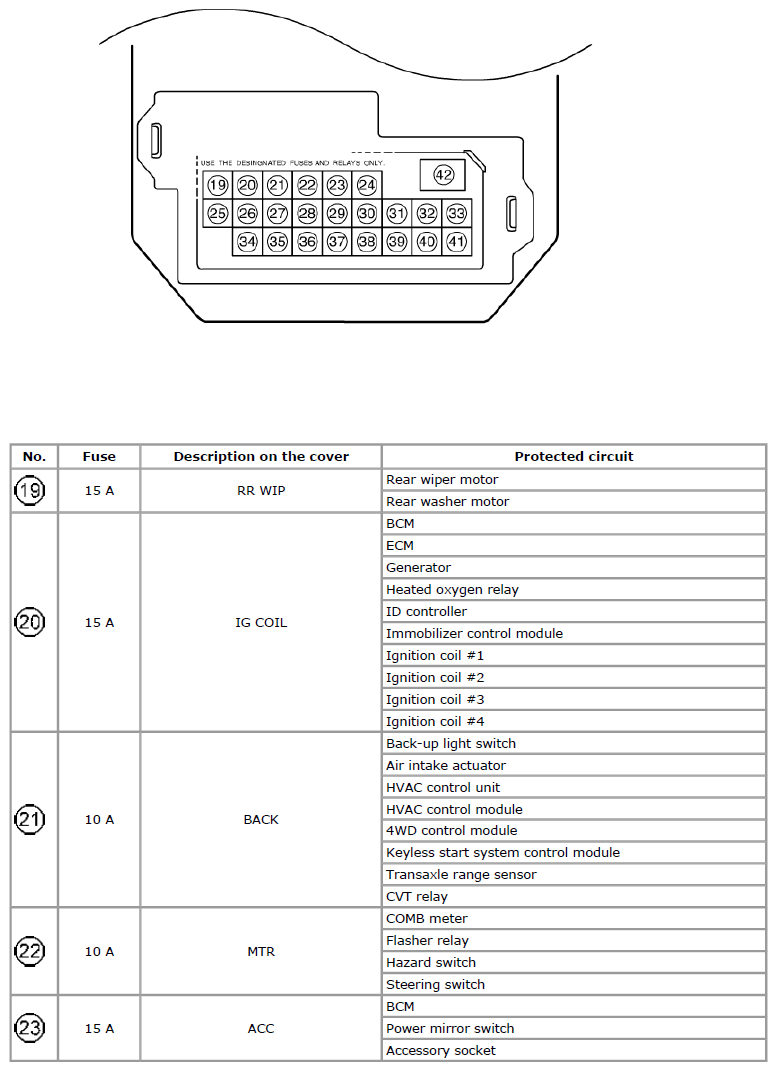

Fig 1: Identifying Individual Circuit Fuse Box No. 2 (In J/B) And Reference Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

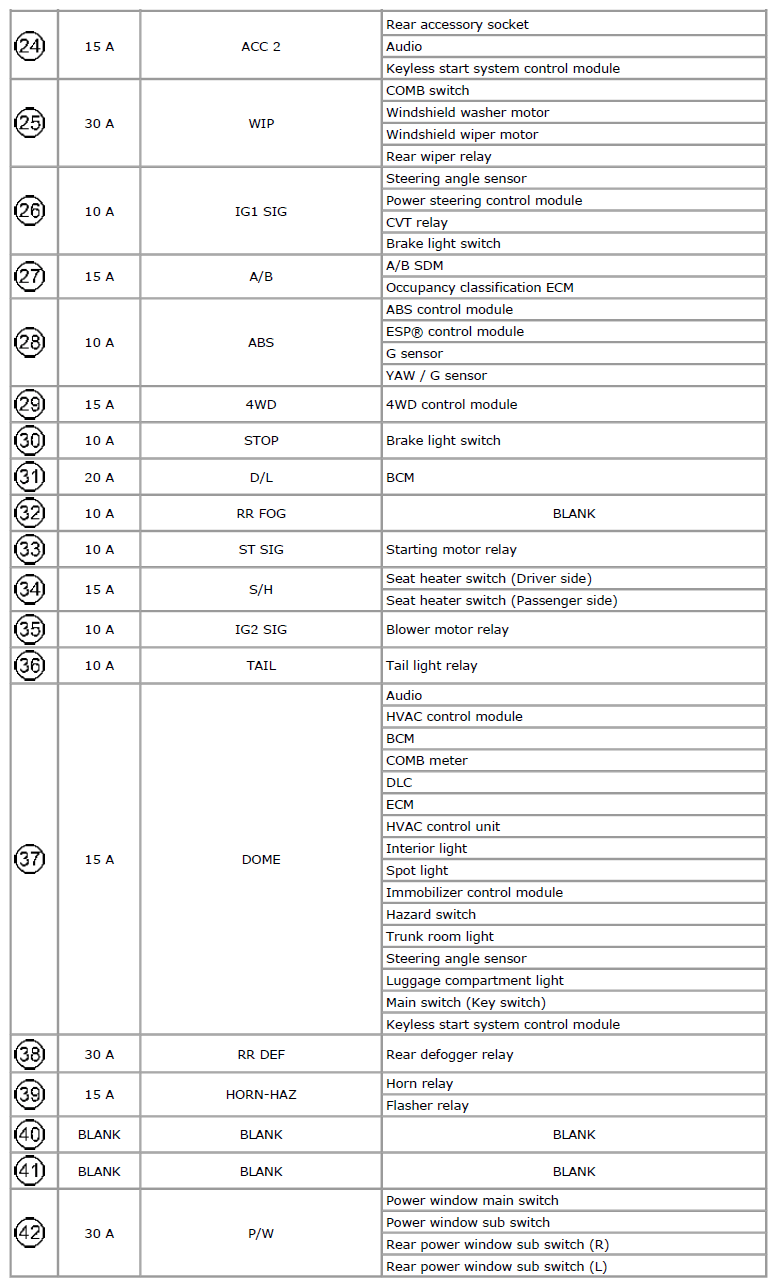

Fig 2: Identifying Individual Circuit Fuse Box No. 2 (In J/B) And Reference Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
