Rear Speaker Removal and Installation (If Equipped): Removal

  1. Remove rear door trim referring to Step 1) to 3) of REAR DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove 3 rear speaker mounting screws (1).
  3. Remove rear speaker (2) from rear door panel (3).
  4. Disconnect rear speaker coupler from rear speaker (2).

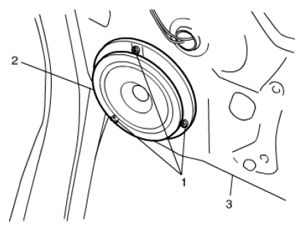

    Fig 1: Disconnecting Rear Speaker Coupler From Rear Speaker
    G06869173Courtesy of SUZUKI OF AMERICA CORP.
