Front Speaker Removal and Installation (If Equipped): Removal

  1. Remove front door trim referring to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove 3 front speaker mounting screws (1).
  3. Remove front speaker (2) from front door panel (3).
  4. Disconnect front speaker coupler from front speaker (2).

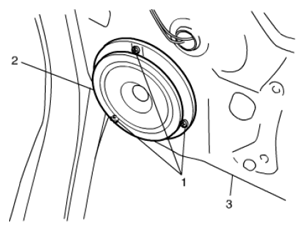

    Fig 1: Disconnecting Front Speaker Coupler From Front Speaker
    G06869172Courtesy of SUZUKI OF AMERICA CORP.
