Center Speaker Removal and Installation (If Equipped): Removal

  1. Remove center speaker cover (1) from center ventilation louver garnish (2) by using flat end rod with a cloth.
  2. Disconnect coupler and screws, and then remove center speaker (3).

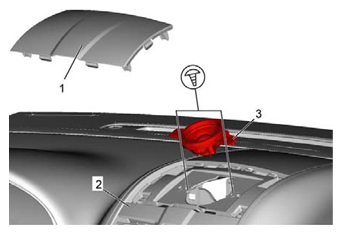

    Fig 1: Disconnecting Coupler And Screws
    G06869174Courtesy of SUZUKI OF AMERICA CORP.
