Rear Drive Shaft Assembly Removal and Installation: Removal

  1. Undo caulking (1) of drive shaft nut (2) and then remove drive shaft nut.

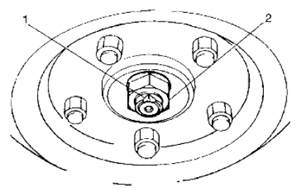

    Fig 1: Removing Drive Shaft Nut
    G06868305Courtesy of SUZUKI OF AMERICA CORP.
  2. Hoist vehicle and remove wheel.
  3. Remove rear drive shaft flange nuts (1), and then remove rear drive shaft.
    Fig 2: Removing Rear Drive Shaft Flange Nuts
    G06868306Courtesy of SUZUKI OF AMERICA CORP.
