Rear Disc Brake Caliper Removal and Installation: Removal

  1. Hoist vehicle and remove rear wheel.
  2. Release parking brake lever.
  3. Remove clip (1).

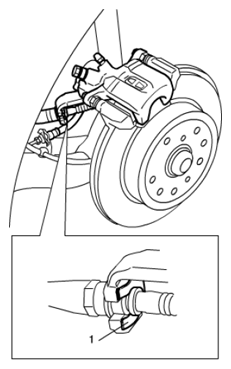

    Fig 1: Identifying Clip
    G06868515Courtesy of SUZUKI OF AMERICA CORP.
  4. Loosen brake pipe flare nut (1) using by flare nut wrench.

    Then remove clip (2).

  5. Remove flexible hose joint bolt (3), and disconnect brake flexible hose (4) from brake caliper.
    Fig 2: Disconnecting Brake Flexible Hose From Brake Caliper
    G06868516Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove caliper pin bolts.
  7. Remove caliper from brake caliper carrier.
  8. Disconnect parking brake cable (1) from lever (2) while rotating lever in direction of arrow.

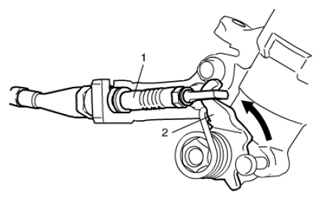

    Fig 3: Disconnecting Parking Brake Cable From Lever
    G06868517Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove brake pads, slide pins and slide pin boots from brake caliper carrier.
  10. Remove brake caliper carrier (1) from rear axle (2).
    Fig 4: Removing Brake Caliper Carrier From Rear Axle
    G06868518Courtesy of SUZUKI OF AMERICA CORP.
