Master Cylinder Reservoir Removal and Installation: Removal

  1. Clean outside of reservoir and master cylinder.
  2. Remove battery referring to BATTERY REMOVAL AND INSTALLATION .
  3. Disconnect fluid level switch coupler (1) and clamp (3) from reservoir (2).

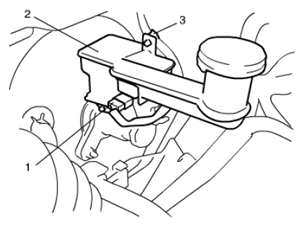

    Fig 1: Disconnecting Fluid Level Switch Coupler And Clamp From Reservoir
    G06868442Courtesy of SUZUKI OF AMERICA CORP.
  4. Drain brake fluid in reservoir.
  5. Disconnect clutch reservoir hose from reservoir (M/T model).
  6. Remove reservoir connector pin (1) by using special tool and then reservoir.

    Special Tool

    (A): 09916-44310

    Fig 2: Removing Reservoir Connector Pin Using Special Tool
    G06868443Courtesy of SUZUKI OF AMERICA CORP.
