Master Cylinder Removal and Installation: Removal

  1. Clean outside of master cylinder.
  2. Remove battery referring to BATTERY REMOVAL AND INSTALLATION .
  3. Disconnect fluid level switch coupler (1) and clamp (3) from reservoir (2).

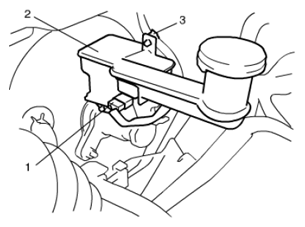

    Fig 1: Disconnecting Fluid Level Switch Coupler And Clamp From Reservoir
    G06868447Courtesy of SUZUKI OF AMERICA CORP.
  4. Drain brake fluid in reservoir.
  5. Disconnect clutch reservoir hose from reservoir (M/T model).
  6. Disconnect brake pipes (1) connected to master cylinder.
  7. Remove master cylinder fixing nuts (2).
  8. Remove master cylinder (3) and O-ring.

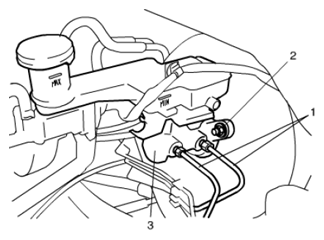

    Fig 2: Identifying Master Cylinder And O-Ring
    G06868448Courtesy of SUZUKI OF AMERICA CORP.
