Trunk Lid Removal and Installation (Sedan): Removal

WARNING: The torsion bars are repulsive. They may spring and cause a personal injury if removed carelessly. Be sure to remove the torsion bars carefully.

Remove trunk lid trim (if equipped).

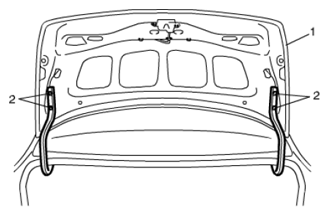

Remove trunk lid opener wire and trunk room harness from trunk lid panel (1).
Remove trunk lid attaching bolts (2) and trunk lid.

Fig 1: Locating Trunk Lid Attaching Bolts
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Handle removed trunk lid carefully. Dropping it can cause damage to itself and vehicle body.

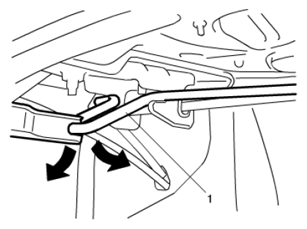

Remove torsion bars (1).

Fig 2: Removing Torsion Bars
Courtesy of SUZUKI OF AMERICA CORP.
Fold rear seat back forward.
Remove center pillar inner lower trims (1) and side sill scuffs (2).

Fig 3: Removing Center Pillar Inner Lower Trims And Side Sill Scuffs
Courtesy of SUZUKI OF AMERICA CORP.
Remove high mounted stop light (if equipped).

Fig 4: Removing High Mounted Stop Light
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear seat side backs (1). Refer to REAR SEAT REMOVAL AND INSTALLATION .

Fig 5: Removing Rear Seat Side Backs
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear pillar inner trims (3), partition front trims (1) and partition trim (2).

Fig 6: Removing Rear Pillar Inner Trims, Partition Front Trims And Partition Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove hinge attaching bolts (1) and take out trunk lid hinges.

Fig 7: Removing Hinge Attaching Bolts
Courtesy of SUZUKI OF AMERICA CORP.
