Hood Removal and Installation: Installation

Reference: HOOD INSPECTION AND ADJUSTMENT

Reverse removal procedure noting the following.

• Apply sealant to contact face "A" of hood hinge.

  Specified sealant.

  "A": Sealant 99000-31110 (SUZUKI Bond No. 1215)

• Adjust hood lock position if necessary referring to HOOD INSPECTION AND ADJUSTMENT .

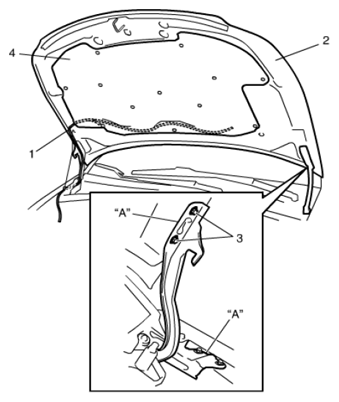

  Fig 1: Locating Mounting Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
