Turn Signal and Hazard Warning Relay Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove junction block (1).
  3. Remove turn signal and hazard warning relay (2) from junction block.

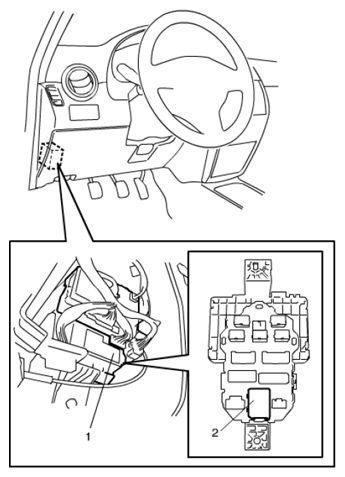

    Fig 1: Removal And Installation Of Turn Signal And Hazard Warning Relay
    G06869130Courtesy of SUZUKI OF AMERICA CORP.
