Idler Pulley: Installation

Reference: ACCESSORY DRIVE BELT TENSIONER AND IDLER PULLEY INSPECTION

Reverse removal procedure noting the following.

• Tighten idler pulley bolt and nuts to specified torque.

  Tightening torque

  Idler pulley bolt (b): 40 N.m (4.1 kg-m, 29.5 lbf-ft)

  Idler pulley nut (c): 40 N.m (4.1 kg-m, 29.5 lbf-ft)

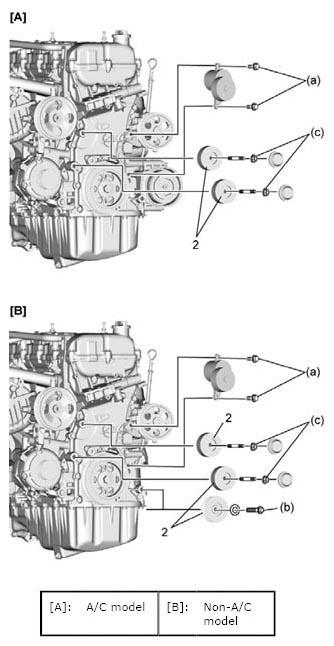

  Fig 1: Identifying Idler Pulley Bolt And Nuts

  Courtesy of SUZUKI OF AMERICA CORP.
