J: Front and Rear Door Wire and Rear Door Wire/K: Roof Wire, Roof Audio Antenna Wire (Hatchback Model)

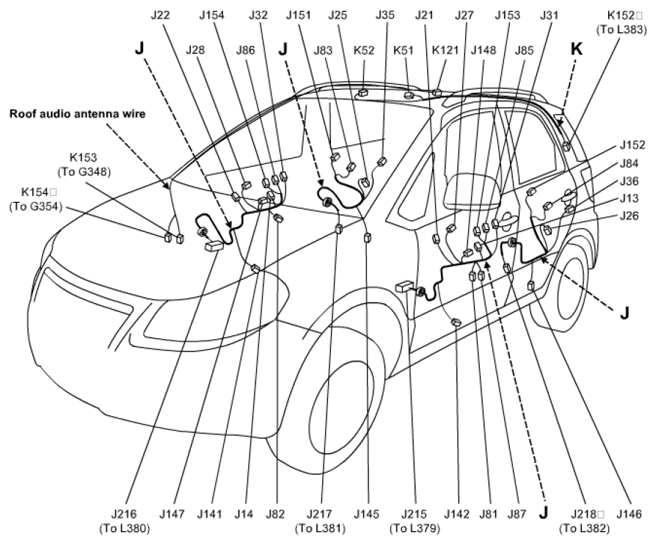

Fig 1: Identifying J Front And Rear Door Wire And Rear Door Wire/K: Roof Wire, Roof Audio Antenna Wire (Hatchback Model)
J: Door Harness (Driver Side)
DOOR HARNESS (DRIVER SIDE) REFERENCE CHART
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J13 | GRY | Driver side door impact-sensor | 10ch |
| J21 | BLK | Front power window motor (Driver side) | |
| J27 | N | Mirror motor (Driver side) | |
| J31 | N | Front door lock motor (Driver side) | |
| J81 | BLU | Power window main switch | |
| J85 | N | Request switch (Driver side) | IF EQPD |
| J87 | N | Mirror switch | |
| J142 | N | Front speaker (L) | |
| J148 | BLK | Tweeter (L) | IF EQPD |
| J153 | N | Door antenna (Driver side) | IF EQPD |
| J215 | GRY | Floor harness (To L379) |
J: Door Harness (Passenger Side)
DOOR HARNESS (PASSENGER SIDE) REFERENCE CHART
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J14 | GRY | Passenger side door impact-sensor | 10ch |
| J22 | BLK | Front power window motor (Passenger side) | |
| J28 | N | Mirror motor (Passenger side) | |
| J32 | N | Front door lock motor (Passenger side) | |
| J82 | N | Power window sub switch | |
| J86 | N | Request switch (Passenger side) | IF EQPD |
| J141 | N | Front speaker (R) | |
| J147 | BLK | Tweeter (R) | IF EQPD |
| J154 | N | Door antenna (Passenger side) | IF EQPD |
| J216 | GRY | Floor harness (To L380) |
J: Rear Door Wire
REAR DOOR WIRE HARNESS REFERENCE CHART
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J25 | BLK | Rear power window motor (R) | |
| J26 | BLK | Rear power window motor (L) | |
| J35 | N | Rear door lock motor (R) | |
| J36 | N | Rear door lock motor (L) | |
| J83 | N | Rear power window sub switch (R) | |
| J84 | N | Rear power window sub switch (L) | |
| J145 | N | Rear speaker (R) | |
| J146 | N | Rear speaker (L) | |
| J151 | BLK | Rear tweeter (R) | IF EQPD |
| J152 | BLK | Rear tweeter (L) | IF EQPD |
| J217 | N | Floor harness (To L381) | |
| J218 | N | Floor harness (To L382) |
K: Roof Wire
ROOF WIRE HARNESS REFERENCE CHART
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K51 | N | Interior light | |
| K52 | N | Spot light | |
| K152 | N | Floor harness (To L383) |
K: Roof Audio Antenna Wire
ROOF AUDIO ANTENNA WIRE HARNESS REFERENCE CHART
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K121 | N | Antenna amplifier | |
| K153 | N | Instrument panel harness (To G348) | |
| K154 | BLK | Instrument panel antenna wire (To G354) |
