Clutch Pedal Position (CPP) Switch Inspection and Adjustment

Clutch Pedal Position (CPP) Switch Inspection and Adjustment

Clutch Pedal Position (CPP) Switch Removal and Installation

Inspection

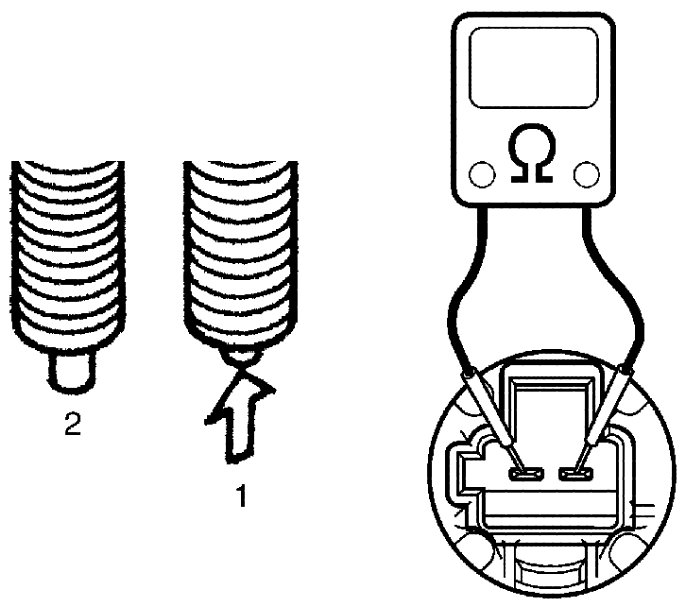

Check for resistance between terminals under each condition below. If check result is not satisfactory, replace.

CPP switch resistance
When switch shaft is pushed (1): Continuity
When switch shaft is free (2): No continuity






Adjustment

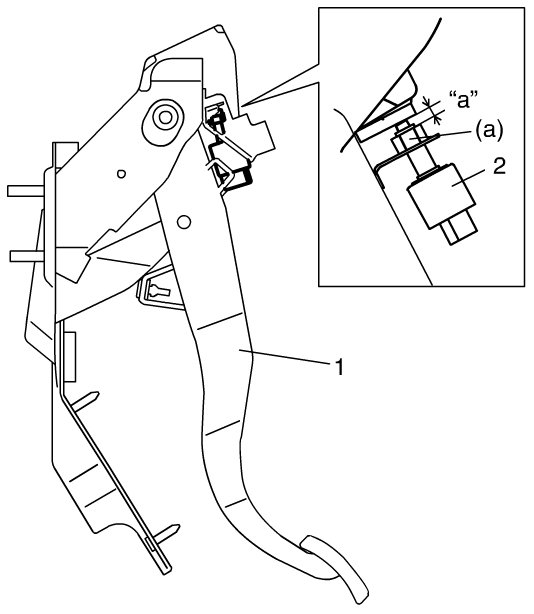

With clutch pedal (1) depressed, adjust switch (2) position so that clearance between end of thread and clutch pedal arm is within specification and then tighten lock nut to specified torque.

Clearance between end of thread and clutch pedal arm
"a": 1.5 - 2.0 mm (0.06 - 0.08 in.)

Tightening torque
CPP switch lock nut (a): 7.5 Nm (0.75 kgf-m, 5.5 lbf-ft)
