Shift Lock Solenoid Inspection




Shift Lock Solenoid Inspection

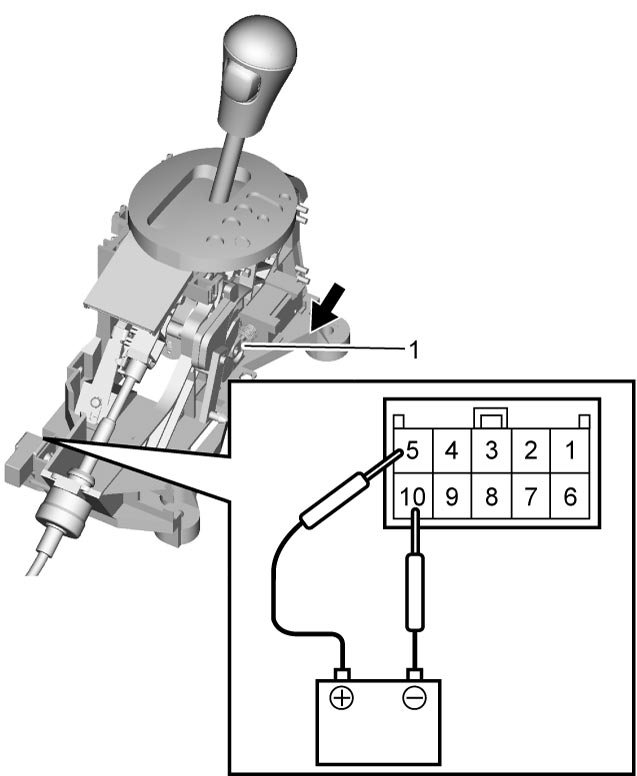

Check that shift lock solenoid rod (1) moves smoothly when battery voltage is conducted and it moves back.

If solenoid rod does not move smoothly, replace.
