Removal and Installation

Windshield Wiper and Washer Switch Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.

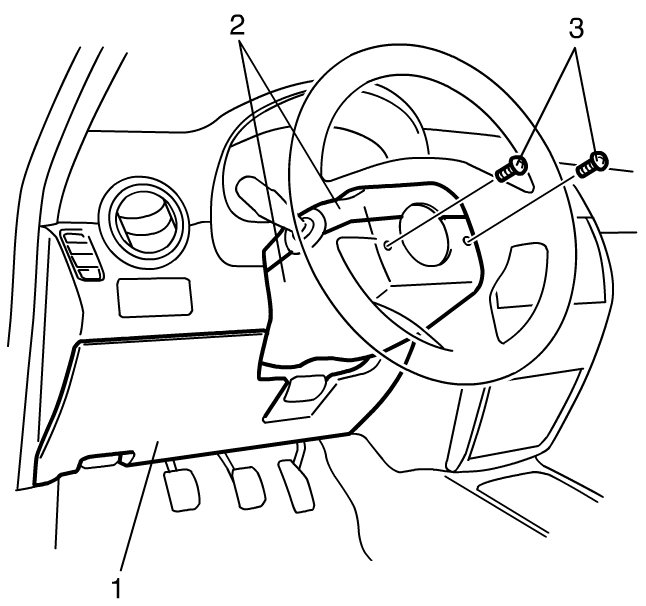

2) Remove steering column hole cover (1).
3) Remove steering column covers (2).

Turn steering wheel to access steering column cover rear end screws (3).





4) (Immobilizer model)

Remove immobilizer control module referring to Service and Repair ICM Removal and Installation.

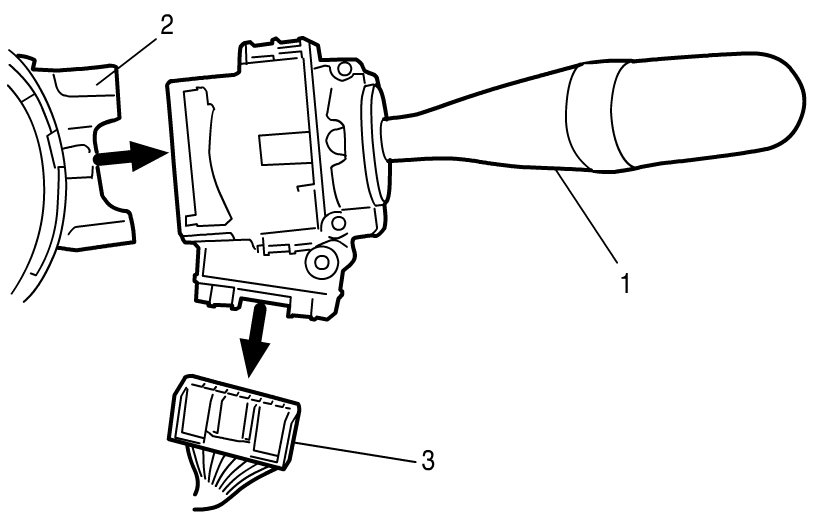

5) Remove windshield wiper and washer switch (if equipped) (1) from combination switch assembly (2) and disconnect its coupler (3).






Installation

Windshield Wiper and Washer Switch Inspection

Reverse removal procedure.
